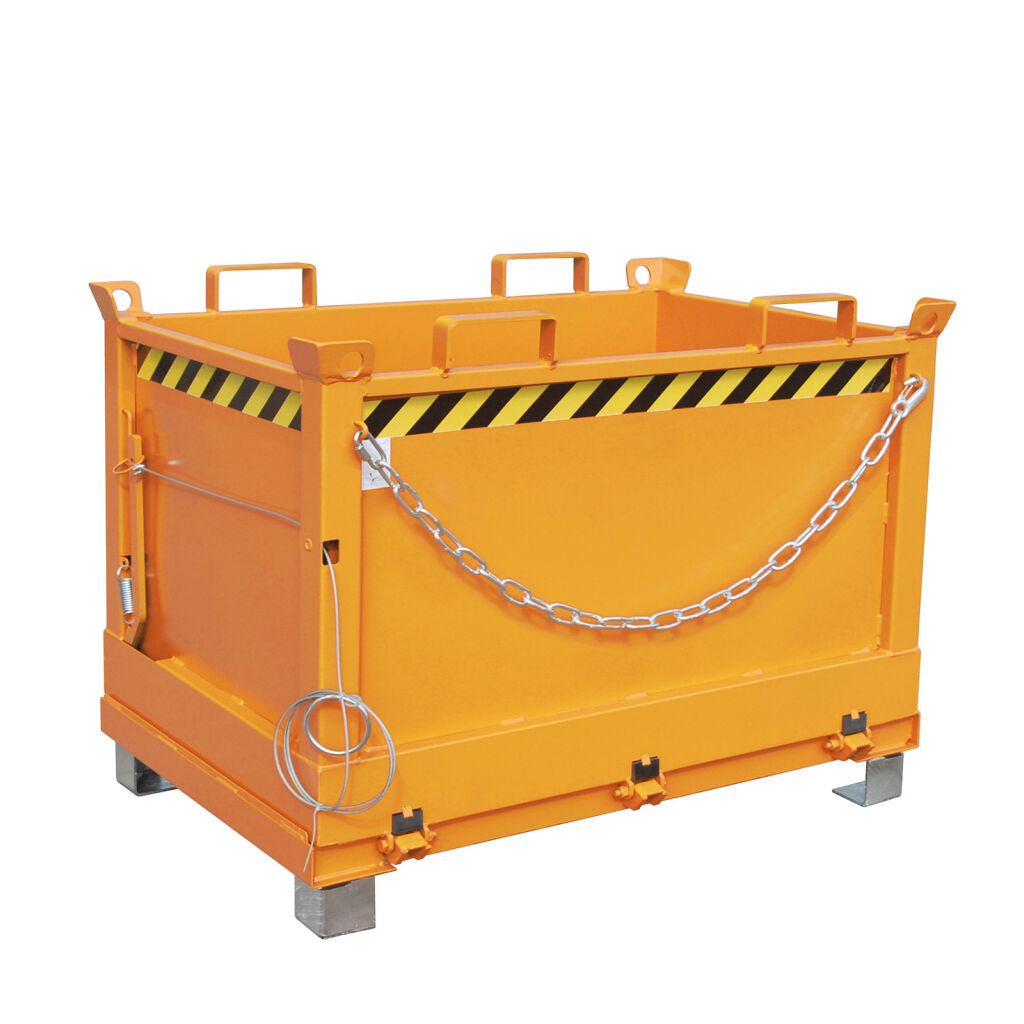

Hopper lifting for fork-lift truck and crane
Volume (ltr) 500|L: 1245, W: 840, H: 845 (mm)|Article code: 72FB500E

Price per item :
€ 1.000,45
€ 1.230,55 inc. VAT
Quantity
Select a version of this product
  • Choose volume (ltr)
Delivery time
hopper lifting for fork-lift truck and crane orange painted 1000 500 72FB500E € 1.000,45 By arrangement
hopper lifting for fork-lift truck and crane blue painted 1000 500 72FB500W € 1.000,45 By arrangement
hopper lifting for fork-lift truck and crane orange painted 1000 750 72FB750E € 1.088,45 By arrangement
hopper lifting for fork-lift truck and crane orange painted 1250 1000 72FB1000E € 1.164,95 By arrangement
hopper lifting for fork-lift truck and crane blue painted 1250 1000 72FB1000W € 1.164,95 By arrangement
hopper lifting for fork-lift truck and crane grey galvanized 1000 500 72FB500V € 1.229,45 By arrangement
hopper lifting for fork-lift truck and crane grey galvanized 1000 750 72FB750V € 1.329,45 By arrangement
hopper lifting for fork-lift truck and crane blue painted 1000 750 72FB750W € 1.342,45 By arrangement
hopper lifting for fork-lift truck and crane orange painted 1500 1500 72FB1500E € 1.366,95 By arrangement
hopper lifting for fork-lift truck and crane blue painted 1500 1500 72FB1500W € 1.366,95 By arrangement
hopper lifting for fork-lift truck and crane grey galvanized 1250 1000 72FB1000V € 1.430,95 By arrangement
hopper lifting for fork-lift truck and crane orange painted 1500 2000 72FB2000E € 1.474,45 By arrangement
hopper lifting for fork-lift truck and crane blue painted 1500 2000 72FB2000W € 1.474,45 By arrangement
hopper lifting for fork-lift truck and crane grey galvanized 1500 1500 72FB1500V € 1.721,45 By arrangement
hopper lifting for fork-lift truck and crane grey galvanized 1500 2000 72FB2000V € 1.869,95 By arrangement

Specifications

Dimensions & Weight
Length (mm)
1245
Width (mm)
840
Internal width (mm)
760
Height (mm)
845
Insertion height (mm)
100
Weight (kg)
125
Capacity & Load Bearing
Loading capacity (kg)
1000
Volume (ltr)
500
Materials & Construction
Material
steel
Walls
walls closed
Colour
orange
Ral colour
2000
Surface treatment
painted
Functionality & Features
Type
hopper
Implementation
lifting for fork-lift truck and crane
Additional specifications
lifting for fork-lift truck and crane
Product Details
Article code:
72FB500E
Article arrangement
New
EAN Code (Gtin):
8719424231571

Description

Orange painted (RAL 2000) bottom flap container with a capacity of 500 liters ideal for collection, storage and transfer of recyclables.

- Robust steel construction with smooth inner walls
- Unlocking the bottom flap with pull cord from the driver's seat
- Rubber suspension dampens the impact of the tipping bottom flap during emptying
- Bottom flap closes automatically when placed back on the ground
- Secured against unintentional lowering and opening of the bottom flap
- Installation by forklift and crane
- Clearance height 100 mm, transportable with pallet truck
- 4 crane eyelets
- 3-way stackable
- Also suitable for route train

Optional:
- 2 swivel and 2 carrier casters made of polyamide Ø 180 mm, one of which is a swivel castor with lock - construction height 225 mm
- Galvanized lid, opens on 2 sides
- Galvanized centering walls for bottom flap
