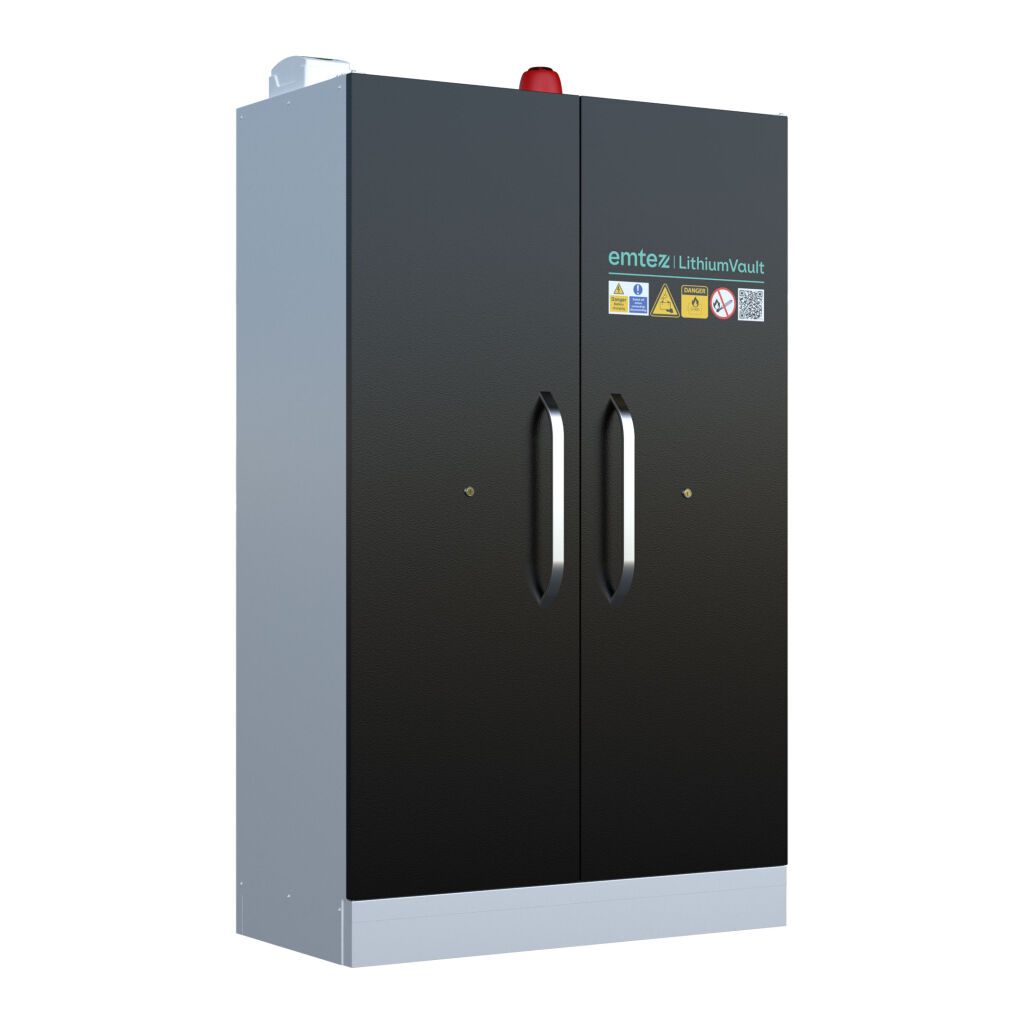

Lithium cabinet storage and charging space for lithium batteries
W: 1200, D: 600, H: 2150 (mm)|Article code: 1947406
Price per item
:
€ 6.534,45
€ 8.037,37 inc. VAT
Quantity
Specifications
Dimensions & Weight
Width (mm)
1200
Internal width (mm)
1095
Height (mm)
2150
Internal height (mm)
1540
Depth (mm)
600
Internal depth (mm)
446
Weight (kg)
350
Shelf heights
Variabel
Capacity & Load Bearing
Loading capacity (kg)
320
Volume (ltr)
752
Load capacity per shelf (kg)
80
Materials & Construction
Material
steel
Colour
black
Surface treatment
electro-galvanized
Front
2 closed hinged doors
Base
base
Functionality & Features
Type
Lithium cabinet
Implementation
storage and charging space for lithium batteries
Type of shelf
grid
Configuration & Storage
Number of shelves
4 shelves
Certifications & Safety
Fire resistant
90 minutes
Certification
CE certified
Norm
EN 14470-1
Product Details
Article code:
1947406
Article arrangement
New
EAN Code (Gtin):
8719424261653
Description
LithiumVault FirePro® cabinet with control panel & charging, 2-door, tall.
Cabinet designed for storing and charging lithium-ion batteries with fire safety features. Certified for 90 minutes of fire safety. 230V Mono with 16A circuit breaker.
- 90 minutes fire resistance.
- In accordance with EN14470-1 TYPE 90.
- In the event of a fire inside the cabinet, the rock wool insulation panels, whose fire resistance has been validated for 90 minutes by a destructive test in accordance with standard EN 1363-1, provide protection against thermal hazards while awaiting the intervention of the fire department.
- Steel construction.
- Cabinet with transport feet and plinth.
- Internal finish in melamine, highly resistant to chemical and aggressive vapors.
- Door closing system with 50°C thermofuse.
- Automatic fire damper at air inlet and outlet, closes at 70°C.
- Spark-free hinges.
- Painted steel drip tray on floor.
- FirePro aerosol generator for automatic suppression in case of “Thermal Runaway” of lithium-ion batteries, activated by FPC-2V2 fire alarm panel. Equipped with potential-free contact for connection to the building fire control panel.
- Smoke and temperature detector.
- Visual and audible alarm.
- 4 sockets with 6 outlets each.
- Maximum power: 3.68kW.
- 16A differential circuit breaker, 3G2.5mm2 cable section and 230V mono type E.
- Door locks: 2 (2 keys supplied).
Cabinet designed for storing and charging lithium-ion batteries with fire safety features. Certified for 90 minutes of fire safety. 230V Mono with 16A circuit breaker.
- 90 minutes fire resistance.
- In accordance with EN14470-1 TYPE 90.
- In the event of a fire inside the cabinet, the rock wool insulation panels, whose fire resistance has been validated for 90 minutes by a destructive test in accordance with standard EN 1363-1, provide protection against thermal hazards while awaiting the intervention of the fire department.
- Steel construction.
- Cabinet with transport feet and plinth.
- Internal finish in melamine, highly resistant to chemical and aggressive vapors.
- Door closing system with 50°C thermofuse.
- Automatic fire damper at air inlet and outlet, closes at 70°C.
- Spark-free hinges.
- Painted steel drip tray on floor.
- FirePro aerosol generator for automatic suppression in case of “Thermal Runaway” of lithium-ion batteries, activated by FPC-2V2 fire alarm panel. Equipped with potential-free contact for connection to the building fire control panel.
- Smoke and temperature detector.
- Visual and audible alarm.
- 4 sockets with 6 outlets each.
- Maximum power: 3.68kW.
- 16A differential circuit breaker, 3G2.5mm2 cable section and 230V mono type E.
- Door locks: 2 (2 keys supplied).
